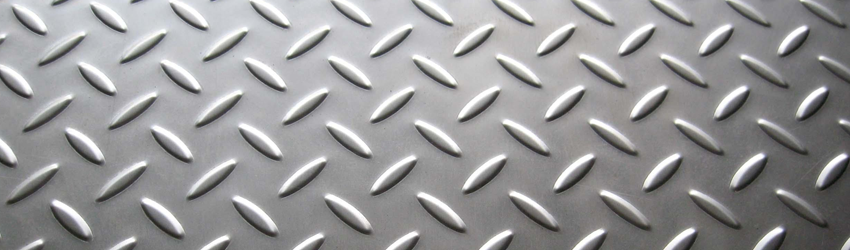

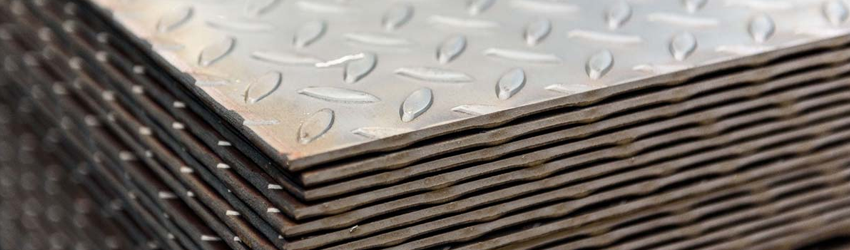

Chequered sheet is a significant form of steel that is used as a raw material for various small to large scale industries.

This form of plates is wear resistant and offers certified hardness. Chequered sheets cater to various wear resistant applications. At Merino Inox Engineering Co., both hot dip Galvanized and self-colour black-condition-finish chequered sheets are available. We also offer diverse thickness and sizes as per the customer requirements. Usually, chequered plate flooring's suggested as road in industries to reduce the chances of skidding.

Width - 1250mm to 1500mm
Length - Can be cut to sheets according to the requirement
Max. Weight - 25 MT per coil
Material - Mild Carbon Steel
Thickness - 2.8mm to 10mm

IS 3502

Standard Specifications		Chemical Composition (%)
Equivalent Specifications	Grade	C Max	Mn Max	S Max	P Max	Si Max	Ai	N Max	Micro Alloys Max	CE Max
IS 3502	E250A	0.23	1.50	0.045	0.045	0.40		0.012	0.25	0.42
EN 10025	S25JR	0.21	1.50	0.035	0.035			0.012		0.40
ASTM A36	A36	0.25		0.050	0.040	0.40



Mechanical Properties ('t'=thickness in mm & 'GL'=Gauge Length)
Tensile Test Direction	YS(Mpa) Min	UTS(Mpa)	%EL(min) GL:5.65√A	Bend (180 Deg)	Temp C	Si Max
T	250	410	23	21
T	275	410-560	21		20	27
T	250	400-550
